💡 Unlock API Gateway Patterns: Practical Insights with .NET Core & Azure
API gateways are essential in managing and optimizing requests between client applications and microservices. As organizations scale their microservices architecture, implementing an effective API gateway pattern ensures secure, scalable, and high-performing interactions.
Let’s explore API gateway patterns, why they’re critical, and some practical examples of tools available in .NET Core and Azure.
What is an API Gateway? 🚪

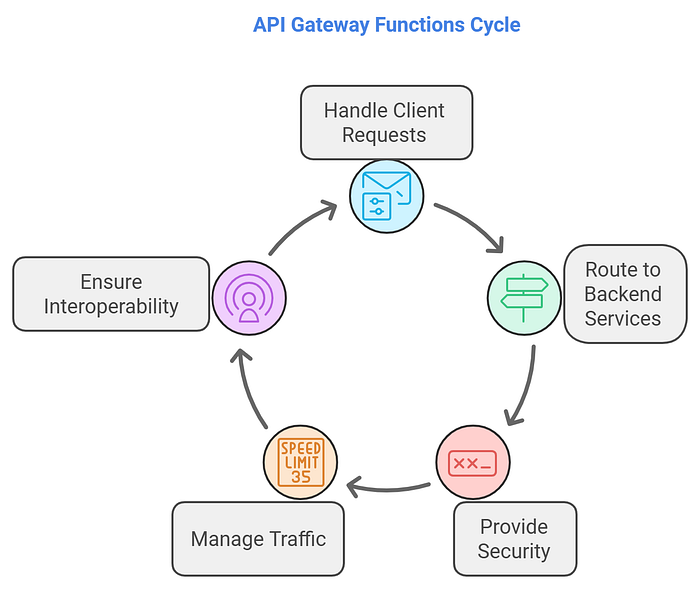

An API gateway acts as a reverse proxy that handles client requests by routing them to the correct backend services. It is the central access point for all incoming requests, providing several benefits:
- Request Routing: Directs each request to its corresponding backend service.
- Security: Enforces authentication, authorization, and request filtering.
- Rate Limiting and Throttling: Controls traffic to protect backend services.
- Protocol Translation: Converts between protocols for seamless interoperability.
By consolidating these functions, API gateways support scalable, reliable, and secure API architectures.
Key API Gateway Patterns

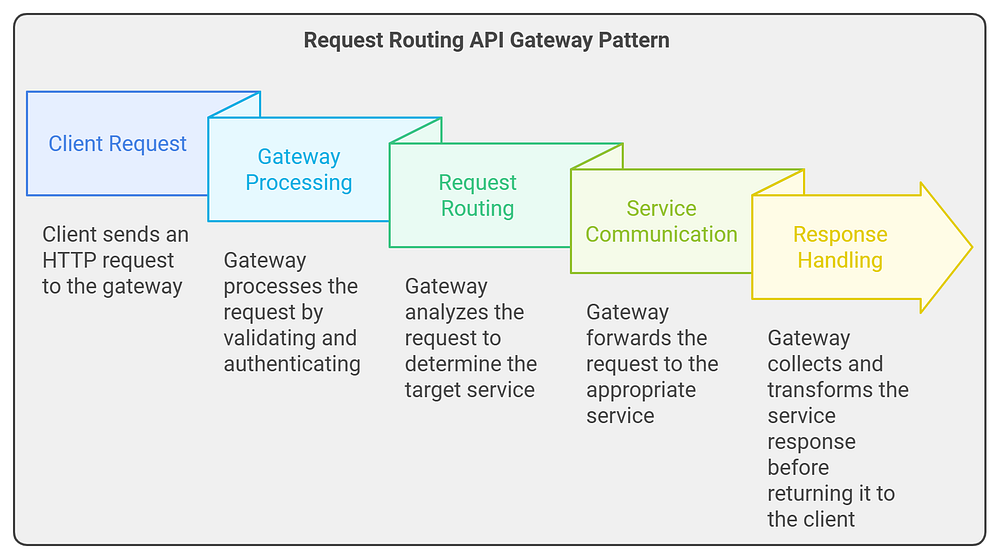

1. Request Routing 🏰
The primary function of any API gateway is to route requests based on various attributes (e.g., URL, headers, parameters). In a microservices context, it hides the complexity of backend architecture from clients, making it easier to update services without affecting the front end.
Example in .NET Core and Azure:
- Azure API Management allows developers to configure routing policies to handle different service endpoints.
- In .NET Core, libraries like Ocelot offer powerful routing capabilities to manage complex microservices routing requirements.
Code Example (Ocelot Routing Configuration):
To set up request routing using Ocelot in .NET Core, you can configure routing in the ocelot.json file as follows:
{
"Routes": [
{
"DownstreamPathTemplate": "/api/service/{everything}",
"DownstreamScheme": "http",
"DownstreamHostAndPorts": [
{
"Host": "localhost",
"Port": 5001
}
],
"UpstreamPathTemplate": "/service/{everything}",
"UpstreamHttpMethod": [ "Get", "Post" ]
}
]
}This configuration routes incoming requests matching /service/{everything} to a downstream service running on localhost:5001.

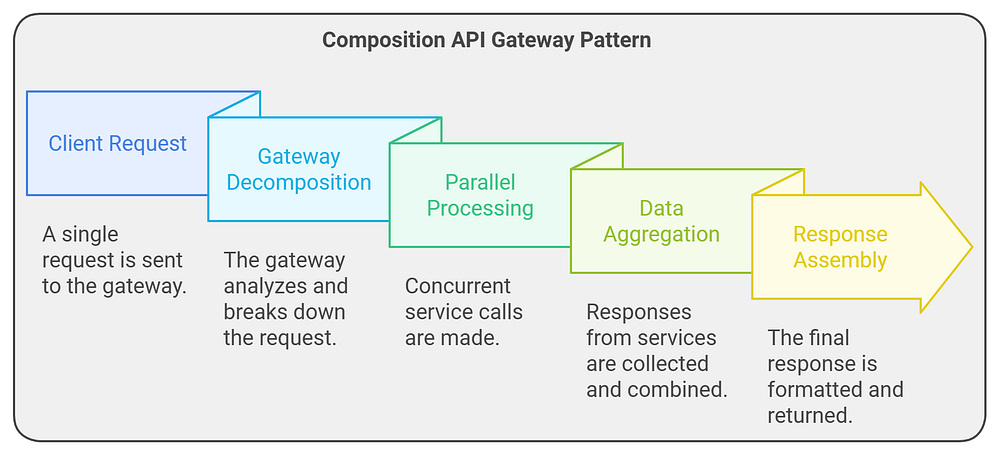

2. Composition 🌐
When an API request requires data from multiple microservices, composition helps combine responses. Instead of multiple client requests, the API gateway fetches data from all required services, aggregates it, and returns a single response.
Example with Azure:
- Azure Logic Apps work well with Azure API Management for orchestrating complex workflows, retrieving data from various sources, and aggregating it into one response for the client.
- Ocelot also supports request aggregation, which can be managed at the API gateway level.
Code Example (Ocelot Aggregation Configuration):
You can configure Ocelot for request aggregation in the ocelot.json file:
{
"Routes": [
{
"DownstreamPathTemplate": "/api/service1",
"DownstreamHostAndPorts": [
{
"Host": "localhost",
"Port": 5001
}
],
"UpstreamPathTemplate": "/composite",
"UpstreamHttpMethod": [ "Get" ]
},
{
"DownstreamPathTemplate": "/api/service2",
"DownstreamHostAndPorts": [
{
"Host": "localhost",
"Port": 5002
}
],
"UpstreamPathTemplate": "/composite",
"UpstreamHttpMethod": [ "Get" ]
}
],
"Aggregates": [
{
"UpstreamPathTemplate": "/composite",
"RouteKeys": [ "service1", "service2" ]
}
]
}This configuration aggregates responses from two downstream services (service1 and service2) into a single response.

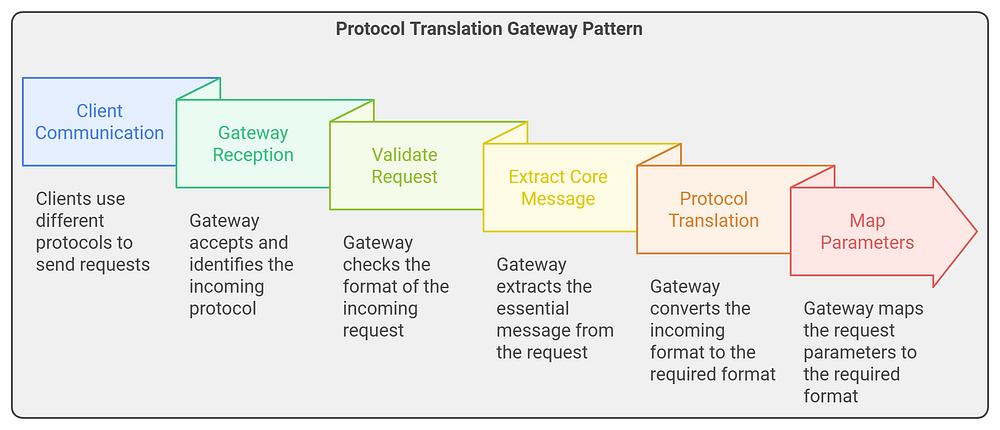

3. Protocol Translation 🛠
Clients and services may use different protocols (e.g., HTTP, gRPC, WebSocket). The gateway can act as a translator to enable communication between protocols, making it easier to integrate new services without changing existing clients.
Example in .NET Core and Azure:
- gRPC support in .NET Core can be combined with Ocelot to manage translation between HTTP clients and gRPC services.
- Azure API Management natively supports protocol translation, facilitating interoperability in hybrid environments.
Code Example (gRPC with Ocelot):
Here is an example of setting up Ocelot to translate HTTP requests to gRPC:
{
"Routes": [
{
"DownstreamPathTemplate": "/GrpcService/{method}",
"DownstreamScheme": "http",
"DownstreamHostAndPorts": [
{
"Host": "localhost",
"Port": 5003
}
],
"UpstreamPathTemplate": "/grpc/{method}",
"UpstreamHttpMethod": [ "Post" ]
}
]
}This configuration enables the API gateway to route HTTP requests to a gRPC service endpoint.
4. Rate Limiting and Throttling ⏳
To prevent backend overload, API gateways enforce rate limiting, setting limits on the number of requests a client can make within a timeframe.
Example in Azure:
- Azure API Management offers built-in policies for rate limiting and throttling, making it easy to configure and enforce traffic limits across different API endpoints.
- Ocelot in .NET Core also supports rate limiting policies, which can be customized to manage incoming traffic based on IP address, API key, or user.
Code Example (Ocelot Rate Limiting Configuration):
You can set up rate limiting in Ocelot by adding the following to the ocelot.json file:
{
"Routes": [
{
"DownstreamPathTemplate": "/api/service/{everything}",
"DownstreamHostAndPorts": [
{
"Host": "localhost",
"Port": 5001
}
],
"UpstreamPathTemplate": "/service/{everything}",
"RateLimitOptions": {
"ClientWhitelist": [ "client1" ],
"EnableRateLimiting": true,
"Period": "1s",
"PeriodTimespan": 1,
"Limit": 5
}
}
]
}This configuration limits incoming requests to 5 requests per second, with a whitelist for specific clients.
Tools for Building API Gateways in .NET Core and Azure 🤖
- Azure API Management: A cloud-based solution for creating and managing API gateways. It provides advanced features like built-in security, caching, and transformation policies.
- Ocelot: An open-source API gateway built for .NET Core, Ocelot is lightweight and designed for complex microservices architectures. It supports a range of functionalities, including routing, composition, rate limiting, and caching.
- NGINX with .NET Core: Though not specific to Azure, NGINX can be paired with .NET Core applications as an effective API gateway solution, providing robust routing and load balancing.
- Azure Functions and Durable Functions: For cases where a lightweight API gateway is sufficient, Azure Functions offer a serverless option to handle routing and integration patterns.
Final Thoughts 🎡
API gateways streamline interactions between clients and microservices, providing essential services for handling routing, security, composition, and scalability. For .NET Core developers working with Azure, tools like Azure API Management and Ocelot offer powerful solutions to create secure, efficient, and scalable API gateways. Each pattern — whether for routing, protocol translation, or rate limiting — adds to the resilience and performance of a microservices-based architecture.
By using these patterns and tools, developers can architect robust API solutions that support seamless communication and maintain high performance as their systems grow.
💻Let’s Connect!
If you have any questions or need further assistance with securing your .NET Core Web API, feel free to reach out:
✨ LinkedIn: https://www.linkedin.com/in/mak11/
✨ Github: https://github.com/mak-thevar
Your engagement helps us grow and improve. Don’t hesitate to share your thoughts and insights in the comments below. If you found this guide helpful, please share it with your network and give it a clap 👏
Happy Coding!
